Documentation of SHINE
Authors: Matteo Fossati, Davide Tornotti
Date: 02/07/2026 (v2.1)
Warning
Version in Development (Unstable Branch)
This documentation refers to a version of the code currently under development, restructuring and testing (non-main branch). Some features may not be stable or verified yet.
For the stable, tested and production-ready version, please refer to the main branch and the official documentation at this link.
Introduction
Project Name: SHINE
SHINE (Spectral Highlighting and Identification of Emission) is a Python package that identifies connected structures above a user-given signal-to-noise (S/N) threshold in 2D and 3D datasets, and provides a full suite of data-analysis utilities for spectroscopic cubes.
Version 2.1 introduces a modular sub-package architecture:
SHINE— Core extraction engine for 2D and 3D data (filtering, thresholding, connected-component labelling, catalogue generation).Find_Em_SHINE— End-to-end pipeline for line-emitter detection and cataloguing, organised in three steps: extraction, covariance estimation, and catalogue building.Make_Im_SHINE— Tool to generate 2-D surface-brightness images from spectroscopic cubes using the SHINE extraction products.
Previous changes (v2.0):
shine_utils— general-purpose utility functions (continuum subtraction).Removal of the Tkinter GUI (
GUI_SHINE).matplotlibadded as a core dependency;sepadded as an optional dependency for automatic source masking in the covariance estimator.Fully revised NumPy-style docstrings for all public functions.
Installation
Requirements:
Python version:
>=3.8Core dependencies:
numpy,scipy,astropy,matplotlib,connected-components-3dOptional:
sep(for automatic continuum-source detection incovariance())Optional:
mypython(for 1-D spectral extraction inbuild_em_catalog())
Steps to Install:
Clone the repository:
git clone https://github.com/matteofox/SHINE.git cd SHINE
Install the code:
python -m pip install .
(Optional) Install with covariance support:
python -m pip install ".[covariance]"
Package Structure
The shine/ package is organised as follows:
shine/
├── __init__.py # Package root: exposes sub-packages and runextraction
├── SHINE.py # Core extraction engine
├── shine_utils.py # General-purpose utilities (clean_clube)
│
├── Find_Em_SHINE/ # Line-emitter extraction and cataloguing
│ ├── __init__.py # Exposes: extract, covariance, build_em_catalog
│ ├── extraction.py # Step 1: SHINE extraction with emitter defaults
│ ├── covariance.py # Step 2: empirical noise-covariance estimation
│ └── catalogue.py # Step 3: final catalogue, S/N correction, cutouts
│
└── Make_Im_SHINE/ # 2-D image generation
├── __init__.py # Exposes: Make_Im_SHINE, main
└── Make_Im_SHINE.py # Image creation from cubes and labels
Usage of SHINE — Core Extraction
The extraction is performed using SHINE. The basic idea behind the code is as follows:
(Optional, applicable to 3D data only) Select a portion of the cube (in the z-direction or wavelength direction) where the user wants to focus the extraction.
Mask certain voxels using a user-provided mask (e.g., continuum sources).
Spatially filter the cube/image and the associated 2D or 3D variance using a user-defined kernel dimension.
Apply a threshold to the cube/image based on the user-defined S/N threshold.
Group connected voxels (3D)/pixels (2D) that meet the S/N threshold and other user-defined parameters.
Generate and save the catalog along with the labeled cube/image.
Run Extraction from the command line
Basic Usage for 3D cube:
SHINE <3D-cube> <3D-variance>
Example (without selecting a subcube):
SHINE ../Cubes/Datacube.fits ../Cubes/Datavarcube.fits --snthreshold 2 --spatsmooth 3 --minvox 300 --mindz 2 --outdir ../Dataproducts/ --writelabels
Example (selecting a subcube):
SHINE ../Cubes/Datacube.fits ../Cubes/Datavarcube.fits --zmin 40 --zmax 100 --snthreshold 2 --spatsmooth 3 --minvox 300 --mindz 2 --outdir ../Dataproducts/ --writelabels --writesubcube
Basic Usage for 2D images:
SHINE <2D-image> <2D-variance>
Example:
SHINE ../Cubes/Dataimage.fits ../Cubes/Datavarimage.fits --snthreshold 2 --spatsmooth 3 --minvox 300 --outdir ../Dataproducts/ --writelabels
Command line arguments for SHINE:
General Arguments:
-h, --help: Show this help message and exit.
Input Control Arguments:
data: Path of the input data (3D or 2D). Expected to be in extension 0, unlessextdatais defined.vardata: Path of the variance cube. Expected to be in extension 0, unlessextvardatais defined. If a positive number is provided a constant variance is assumed; if -1, the variance is computed from the data with a sigma-clipping algorithm.--mask2d: (Optional) Path of an optional two-dimensional mask to be applied along the wave axis.--mask2dpost: (Optional) Path of an optional two-dimensional mask to be applied after the spatial smoothing.--mask3d: (Optional) Path of an optional three-dimensional mask. (Not implemented yet).--extdata: Specifies the HDU index in the FITS file to use for data extraction (default=0).--extvardata: Specifies the HDU index in the FITS file variance to use for data extraction (default=0).--zmin: (Optional) Select the cube and the variance: initial pixel in z direction (from 0). Only valid for 3D data.--zmax: (Optional) Select the cube and the variance: final pixel in z direction (from 0). Only valid for 3D data.--lmin: (Optional) Select the cube and the variance: initial wavelength in z direction (in Angstrom). Only valid for 3D data.--lmax: (Optional) Select the cube and the variance: final wavelength in z direction (in Angstrom). Only valid for 3D data.
Extraction Arguments:
--snthreshold: The SNR of voxels (3D)/pixels (2D) to be included in the extraction (default=2).--spatsmooth: Gaussian Sigma of the spatial convolution kernel applied in X and Y (default=0).--spatsmoothX: (Optional) Gaussian Sigma of the spatial convolution kernel applied in X. Has priority overspatsmooth.--spatsmoothY: (Optional) Gaussian Sigma of the spatial convolution kernel applied in Y. Has priority overspatsmooth.--specsmooth: Gaussian Sigma of the spectral convolution kernel applied in Lambda.--usefftconv: IfTrue, use FFT for convolution rather than the direct algorithm.--dovarsmooth: If False, do not apply the smoothing on the vardata.--connectivity: Voxel connectivity scheme to be used (default=26). Allowed values: 4, 8 (2D); 26, 18, 6 (3D).--maskspedge: Determines how much, in pixels (default=20), to expand the mask around the edges of the cube/image.
Cleaning Arguments:
--minvox: Minimum number of connected voxels (3D)/pixels (2D) for a source to be in the final catalogue (default=1). For 2D data this argument has priority over--minarea.--mindz: Minimum number of connected voxels in the spectral direction for a source to be in the final catalogue (default=1). Only valid for 3D data.--maxdz: Maximum number of connected voxels in the spectral direction for a source to be in the final catalogue (default=200). Only valid for 3D data.--minarea: Minimum number of connected projected spatial voxels (3D)/pixels (2D) for a source to be in the final catalogue (default=1).
Output Control Arguments (inherit the original file name):
--outdir: Output directory path (Default ./).--writelabels: If set, write labels cube/image. The file is saved asdataname.LABELS_out.fits.--writesmdata: If set, write the smoothed cube/image. The file is saved asdataname.FILTER_out.fits.--writesmvar: If set, write the smoothed variance. The file is saved asvarname.FILTER_out.fits.--writesmsnr: If set, write the S/N smoothed cube/image. The file is saved asdataname.FILTERSNR_out.fits.--writesubcube: If set and used, write the subcubes (cube and variance). Only valid for 3D data. The file is saved asdataname.SUBCUBE.fitsorvarname.SUBCUBE.fits.--writevardata: If vardata is a user-provided constant value or -1 (auto-computed from sigma-clipping) write the variance.
Run Extraction using Python
SHINE can be used also in a Python code.
Basic Usage for 3D data:
from astropy.table import Table
from shine import SHINE
# Extraction on the full cube
SHINE.runextraction(
'../Data/Datacube.fits', '../Data/Datavarcube.fits',
snthreshold=2, spatsmooth=4,
minvox=3000, minarea=1000,
mask2d='../Data/2D_MASK.fits',
mask2dpost='../Data/2D_MASK_post.fits',
outdir='../Dataproducts/',
writelabels=True, maskspedge=20,
writesmdata=True, writesmsnr=True,
)
# Extraction on a subcube (by pixel index)
SHINE.runextraction(
'../Data/Datacube.fits', '../Data/Datavarcube.fits',
zmin=40, zmax=100,
snthreshold=2, spatsmooth=4,
minvox=3000, minarea=1000, maskspedge=20,
mask2d='../Data/2D_MASK.fits',
mask2dpost='../Data/2D_MASK_post.fits',
outdir='../Dataproducts/',
writelabels=True, writesmdata=True, writesmsnr=True,
)
# Quick visualisation of the output catalogue
catalogue3D = Table.read('../Outdir/Datacube.CATALOGUE_out.fits')

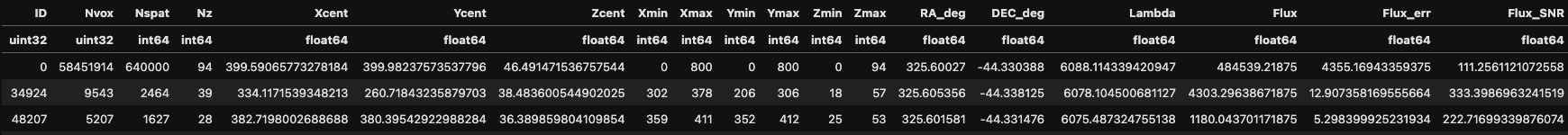

Catalogue output from 3D extraction (Example).
Basic Usage for 2D data:
from astropy.table import Table
from shine import SHINE
# Attention! Remember to change connectivity to 4 or 8 for 2D data.
SHINE.runextraction(
'../Data/Dataimage.fits', '../Data/Datavarimage.fits',
connectivity=8, snthreshold=3, spatsmooth=1,
minvox=40, maskspedge=20,
outdir='../Dataproducts/', writelabels=True,
)
catalogue2D = Table.read('../Outdir/Dataimage.CATALOGUE_out.fits')

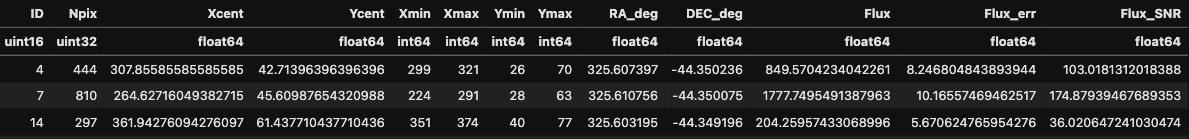

Catalogue output from 2D extraction (Example).
Usage of Find_Em_SHINE — Line-Emitter Pipeline
Find_Em_SHINE provides a three-step modular pipeline for extracting and
cataloguing line emitters from spectroscopic cubes. Each step can be called
independently, enabling fine-grained control over the workflow.
import shine
# Step 1: Extraction
products = shine.Find_Em_SHINE.extract(...)
# Step 2: Covariance estimation
covmap, sseg, wseg, fitres = shine.Find_Em_SHINE.covariance(...)
# Step 3: Catalogue building
catalog = shine.Find_Em_SHINE.build_em_catalog(...)
Step 1 — extract: SHINE extraction for emitters
A convenience wrapper around SHINE.runextraction() with defaults optimised
for line-emitter detection. It:
optionally performs continuum subtraction before extraction (via
clean_clube);forces output of labels, filtered data, and filtered variance cubes (required by the downstream covariance and catalogue steps).
from shine.Find_Em_SHINE import extract
products = extract(
'../Data/Datacube.fits',
'../Data/Datavarcube.fits',
snthreshold=3.0,
spatsmooth=2.0,
connectivity=26,
maskspedge=0,
mindz=3,
maxdz=50,
minvox=27,
minarea=9,
outdir='./extraction/',
do_continuum_sub=True, # optional continuum subtraction
rebinfac=40,
filtsize=7,
)
# products is a dictionary with paths to the output files:
# products['fcube_filtered'] — smoothed data cube
# products['fvar_filtered'] — smoothed variance cube
# products['fsegmap'] — segmentation (labels) cube
# products['fcatalogue'] — raw extraction catalogue
# products['fcube_clean'] — continuum-subtracted cube (if do_continuum_sub=True)
Parameters:
fcube: Path to the science data cube FITS file.fvar: Path to the variance cube FITS file, or a numeric string /'-1'.extdata,extvar(default 0): HDU extension indices.mask2d,mask2dpost(default None): Paths to pre/post-smoothing 2-D masks (1 = bad).snthreshold(default 2.0): S/N threshold for voxel inclusion.spatsmooth(default 2.0): Spatial Gaussian sigma (pixels).specsmooth(default 0.0): Spectral Gaussian sigma (pixels); 0 to disable.connectivity(default 26): Voxel connectivity: 6, 18, or 26.maskspedge(default 20): Pixels to mask around the field edges.mindz(default 1): Minimum spectral extent per source (layers).maxdz(default 200): Maximum spectral extent per source (layers).minvox(default 1): Minimum total voxels per source.minarea(default 1): Minimum projected spatial area per source.zmin,zmax(default None): Layer index range.lmin,lmax(default None): Wavelength range (Å).outdir(default ‘./’): Output directory.do_continuum_sub(default False): IfTrue, subtract the continuum before extraction usingclean_clube.rebinfac(default 40): Spectral re-binning factor for continuum subtraction.filtsize(default 7): Median filter width for continuum subtraction.
Returns: a dictionary with keys 'fcube_filtered', 'fvar_filtered',
'fsegmap', 'fcatalogue', 'fcube_clean'.
Step 2 — covariance: empirical noise-covariance estimation
Estimates the empirical noise covariance of the (smoothed) data cube by sampling random apertures of increasing projected size at random positions and wavelengths. The measured flux/noise ratio is fitted with a per-wavelength polynomial model that can later be used to correct the S/N of extracted sources.
from shine.Find_Em_SHINE import covariance
covmap, sseg, wseg, fitres = covariance(
fcube = products['fcube_filtered'],
fvar = products['fvar_filtered'],
outdir = './covariance/',
mask_source = products['fsegmap'], # optional
nsegments = 500,
allsizes = list(range(2, 31)),
dl = 4,
nsamples = 10000,
pixel_scale = 0.2,
fitdeg = 2,
plot = True,
)
Parameters:
fcube: Path to the filtered data cube (*FILTER_out.fitsfrom SHINE--writesmdata).fvar: Path to the filtered variance cube (*FILTER_out.fitsfrom SHINE--writesmvar).outdir: Output directory (created automatically if absent).extcube,extvar(default 0): HDU extension indices.allsizes(default range(2, 31)): List of aperture sizes in pixels to probe.nsegments(default 500): Number of spectral wavelength segments.dl(default 4): Spectral depth (layers) of each random aperture sample.nsamples(default 10 000): Valid samples to collect per (size, segment) combination.max_attempts(default 100 000): Maximum random draws before giving up on a combination.mask_source(default None): Path to a FITS source/continuum mask. If None andsepis installed, sources are detected automatically; otherwise only the edge mask is applied.mask_edge(default None): Path to a FITS edge mask. If None, derived automatically from NaN/zero pixels.pixel_scale(default 0.2): Pixel scale in arcsec/pixel (MUSE nominal).fitdeg(default 2): Degree of the polynomial fit to the covariance per wavelength segment.plot(default True): Save a diagnostic 2-panel PDF.verbose(default True): Print progress.
Output files written to outdir:
npixscaling_spscale_{nsegments}seg.npz— NumPy archive with keysnstd,std,size,waves.covariance_map.pdf— 2-panel diagnostic plot (2-D covariance map + mean covariance vs aperture size with polynomial fit).covariance_1Dfit.txt— ASCII table with columnsWmin Wmax P2 P1 P0(columns scale withfitdeg).
Returns: (covmap, ssegments, wsegments, fitres) tuple.
Step 3 — build_em_catalog: final emitter catalogue
Builds the final catalogue of line emitters starting from the raw SHINE catalogue and segmentation map. Computes covariance-corrected S/N, applies quality cuts, assigns confidence classes, and generates per-source image cutouts and spectra.
from shine.Find_Em_SHINE import build_em_catalog
catalog = build_em_catalog(
fcube = products['fcube_filtered'],
fcube_var = products['fvar_filtered'],
fsegmap = products['fsegmap'],
catpath = products['fcatalogue'],
outdir = './emitters/',
cov_dir = './covariance/',
SNcut = (7, 5),
checkimg = True,
)
Main steps performed:
Loads the raw SHINE catalogue and adds quality columns.
Computes the covariance correction vector from
cov_poly.Computes velocity offsets and (optionally) trims the catalogue.
Computes per-source corrected S/N, filling
SNR,SNR_odd,SNR_even,SNR_med,covfac,BoxFraction,OverContinuum.Applies S/N and quality cuts and assigns confidence classes.
Writes
{catname}_all_SNR.fitsand{catname}_select_SNR.fits.If
checkimg=True, generates per-source image cutouts.If
fcube_origis provided andmypythonis installed, extracts 1-D spectra for each source.
Parameters:
fcube: Path to the filtered data cube.fcube_var: Path to the filtered variance cube.fsegmap: Path to the SHINE segmentation map (*LABELS_out.fits).catpath: Path to the SHINE output catalogue (*CATALOGUE_out.fits).outdir(default ‘./’): Output directory.cov_poly(default None): Covariance correction model. Accepts a 1-D array (single polynomial in aperture size) or a 2-D array (per-wavelength polynomial, as written bycovariance). IfNone, no correction is applied.cov_dir(default None): Path to the covariance estimation directory. If provided andcov_polyisNone, the 1-D polynomial fit coefficients are automatically loaded from{cov_dir}/covariance_1Dfit.txt.target_z,rest_line(default None): Target redshift and rest-frame line wavelength for velocity-offset computation.vel_cut(default None): Remove sources with|veloffset| > vel_cut(km/s).SNcut(default (7, 5)): S/N thresholds for confidence class assignment (highest first).DeltaEOSNcut(default (0.5, 0.5)): Max fractional even/odd S/N difference per class.SNEOcut(default (3, 3)): Minimum even and odd S/N per class.fracnpix(default None): Minimum box fraction for source inclusion.derived(default True): Compute S/N and other derived quantities.checkimg(default True): Generate per-source image cutouts.mask(default None): Path to a 2-D mask (1 = bad) for removing sources.startind(default 0): Index from which to start the cutout loop.padding(default 50): Spatial padding (pixels) for image cutouts.pixel_scale(default 0.2): Pixel scale in arcsec/pixel.fcube_median,fcube_odd,fcube_even(default None): Half-exposure cubes for quality checks.fcube_median_var,fcube_odd_var,fcube_even_var(default None): Associated variance cubes.fcube_orig(default None): Unsmoothed cube for 1-D spectral extraction (requiresmypython).fsource_img(default None): 2-D continuum aperture map for overlap flagging.marzred(default None): Marz-format redshift catalogue for continuum sources.
Output files:
{outdir}/{catname}_all_SNR.fits— all sources above the minimum S/N.{outdir}/{catname}_select_SNR.fits— sources after all quality cuts.{outdir}/objs/id{Id}/id{Id}_img.fits— per-source image cutouts.{outdir}/objs/id{Id}/spectrum.fits— 1-D spectra (requiresmypython).
Returns: astropy.table.Table — the final catalogue.
Full Find_Em_SHINE Workflow Example
Here is a complete example showing how to run the full emitter extraction pipeline from Python:
import shine
import numpy as np
# ---- Step 1: Extract ----
products = shine.Find_Em_SHINE.extract(
'Datacube.fits', 'Varcube.fits',
snthreshold=2.0, spatsmooth=2.0,
connectivity=26, maskspedge=20,
mindz=1, maxdz=200, minvox=1, minarea=1,
outdir='./extraction/',
do_continuum_sub=True,
)
# ---- Step 2: Covariance ----
covmap, sseg, wseg, fitres = shine.Find_Em_SHINE.covariance(
fcube = products['fcube_filtered'],
fvar = products['fvar_filtered'],
outdir = './covariance/',
mask_source = products['fsegmap'],
nsegments = 500,
pixel_scale = 0.2,
)
# ---- Step 3: Build catalogue ----
catalog = shine.Find_Em_SHINE.build_em_catalog(
fcube = products['fcube_filtered'],
fcube_var = products['fvar_filtered'],
fsegmap = products['fsegmap'],
catpath = products['fcatalogue'],
outdir = './emitters/',
cov_dir = './covariance/', # automatically loads covariance_1Dfit.txt
target_z = 3.1,
rest_line = 1216.0,
vel_cut = 2000,
SNcut = (7, 5),
checkimg = True,
padding = 50,
)
print(f'Final catalogue: {len(catalog)} sources')
Usage of Make_Im_SHINE — Image Generation
Make_Im_SHINE creates 2-D surface-brightness images from 3-D spectroscopic
cubes, optionally using the SHINE labels cube to select specific sources.
Run generation of images by command line
Basic Usage (for 3D data only):
Make_Im_SHINE <Datacube> <Cubelabels>
Example using a 3D mask for selecting voxels:
Make_Im_SHINE ../Cubes/Datacube.fits ../Cubes/Cubelabels.fits --Id 2 5 9 --outdir ../Dataproducts/ --itype flux --writeout
Example using a 3D mask for selecting one single object and the associated pseudo narrow-band around it (only for one single Id):
Make_Im_SHINE ../Cubes/Datacube.fits ../Cubes/Cubelabels.fits --Id 2 --outdir ../Dataproducts/ --itype flux --nls -1 --nlsadd 2 --writeout
Example to create a narrow band image:
Make_Im_SHINE ../Cubes/Datacube.fits --outdir ../Dataproducts/ --itype flux --writeout
Command line arguments for Make_Im_SHINE:
General Arguments:
-h, --help: Show this help message and exit.
Input Control Arguments:
cube: Path of the input datacube. Expected to be in extension 0, unlessextcubis defined.labelsCube: Path of the cube with labels. Expected to be in extension 0, unlessextlabelsis defined.--Id: The IDs of the grouped voxels to be used for the surface brightness image extraction. If a list is passed, all the valid IDs will be stacked into the final image. If[-1](default), stacks all the IDs in thelabelsCube.--itype: Type of image to produce. Allowed values:flux(default),mean, ormedian.--extcub: Specifies the HDU index in the FITS file cube to use for data extraction (default=0).--extlabels: Specifies the HDU index in the FITS file labels to use for labels data extraction (default=0).--nsl: Pseudo narrow-band: selects the provided layer associated with the object as the central layer from which the pseudo narrow-band is built. If-1, it selects the mean layer of the object. Use this only iflen(Id)=1. Default is-2(no noise layers).--nsladd: Pseudo narrow-band: specifies how many layers to collapse adjacent to the selected central one (default=0).
Output Control Arguments:
--outdir: Output directory path (default=``./``).--writeout: If set, writes the flux image and the associated variance image. The file is saved asdataname.IMAGE.fits.--addname: Optional suffix to append to the base name of the output file.
Run generation of images using Python
from shine.Make_Im_SHINE import Make_Im_SHINE
# Image from labels cube, single ID, no pseudo narrow-band
img = Make_Im_SHINE(
'../Data/Datacube.fits', labelsCube='../Data/Labelscube.fits',
Id=[45], extcub=0, extlabels=0, itype='flux',
outdir='../Dataproducts', writeout=True,
)
# Image from labels cube, single ID, pseudo narrow-band ±2 layers around mean
img = Make_Im_SHINE(
'../Data/Datacube.fits', labelsCube='../Data/Labelscube.fits',
Id=[45], extcub=0, extlabels=0, itype='flux',
outdir='../Dataproducts', writeout=True, nsl=-1, nsladd=2,
)
# Narrow-band image (all voxels)
img = Make_Im_SHINE(
'../Data/Datacube.fits', extcub=0, itype='flux',
outdir='../Dataproducts', writeout=True,
)
General Utilities (shine_utils)
The shine_utils module provides general-purpose utility functions.
clean_clube — continuum subtraction
from shine.shine_utils import clean_clube
from astropy.io import fits
cube = fits.open('Datacube.fits')[0].data
cube_clean = clean_clube(cube, filtsize=7, rebinfac=40)
Parameters:
data: 3-D numpy array (nz, ny, nx).filtsize(default 7): Number of re-binned spectral slices used for the median filter applied along the spectral axis.rebinfac(default 40): Number of original spectral layers collapsed into each continuum slice.
Returns: continuum-subtracted masked array with the same shape as the input.
Algorithm:
Re-bin the cube spectrally into groups of
rebinfaclayers using a sigma-clipped median.Apply a 1-D median filter of width
filtsizealong the re-binned spectral axis.Subtract the interpolated continuum layer-by-layer from the original cube.
Note
clean_clube can also be called automatically as part of
Find_Em_SHINE.extract() by setting do_continuum_sub=True.
Changelog
2.0.0 - 02-07-2026
Restructured SHINE package into a modular sub-package architecture.
Added Find_Em_SHINE sub-package for the line-emitter extraction and cataloguing pipeline (extract, covariance, build_em_catalog).
Moved Make_Im_SHINE into its own sub-package for better modularity.
Simplified shine_utils.py to only contain clean_clube (general utility).
Updated documentation to reflect the new structure.
1.1.0 - 20-01-2025
New version fully adapted for 2D image extraction with new features.
1.0.0 - 10-12-2024
First public release.
Contributing
If you are interested in contributing to the project, please contact us and follow these steps:
Fork the repository on GitHub.
Create a new branch for your feature/bugfix.
Submit a pull request.
API
This section lists the main available functions in the SHINE package.
shine.SHINE — Core Extraction Engine
SHINE.runextraction: Performs the full extraction process (filter → threshold → CC labelling → catalogue → photometry → WCS).SHINE.subcube: Extracts a spectral sub-cube by pixel index or wavelength.SHINE.filter_cube: Applies a 2-D or 3-D Gaussian smoothing kernel to the cube/variance.SHINE.threshold_cube: Thresholds the cube in S/N, returning a boolean cube.SHINE.extract: Applies the CC3D connected-components algorithm.SHINE.generate_catalogue: Generates a catalogue from a labelled cube.SHINE.cleaning: Removes sources that do not meet size/voxel criteria.SHINE.compute_photometry: Measures flux, flux uncertainty, S/N, and flux-weighted centroids.SHINE.add_wcs_struct: Adds RA/Dec/Lambda columns to the catalogue.
shine.Find_Em_SHINE — Line-Emitter Pipeline
Find_Em_SHINE.extract: Run SHINE extraction with emitter-optimised defaults; optional continuum subtraction.Find_Em_SHINE.covariance: Empirical noise-covariance estimation with random aperture sampling.Find_Em_SHINE.build_em_catalog: Full post-processing pipeline: S/N correction, confidence classes, cutouts, spectra.
shine.Make_Im_SHINE — Image Generation
Make_Im_SHINE.Make_Im_SHINE: Produces 2-D surface-brightness images (flux/mean/median) from the cube using the labels cube.
shine.shine_utils — General Utilities
shine_utils.clean_clube: Continuum subtraction via spectral re-binning and median filtering.
License
Copyright (C) 2024–2026 The Authors
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License.
